Pillar Type Drill Machine

  19 mm Pillar Type Drill Machine
  Specification   Model
  Drilling Capacity (in Steel)   19 mm
  Column Diameter   74.35 mm
  Spindle Center to back distance   200 mm
  Spindle nose to table distance   405 mm
  Spindle nose to base distance   635 mm
  Table Travel   250 mm
  Taper in Spindle   MT.2
  Number of Speed   8 Speed
  Range of Speed   86 to 3360 RPM
  Table Size   260 x 260 mm
  Base Size (Machined Area)   250 x 220 mm
  Overall Base Size   450 x 295 mm
  Spindle Travel   125 mm
  Column Length   900 & 1220 mm
  Overall height with pulley Guard   1100 mm
  V. Belt Section   A. 42
  Weight (Approx)   90 Kgs
  Motor 1440 RPM 3 Phase 440 Volts   0.50 HP

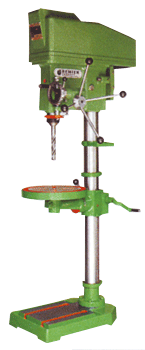

  25 mm Pillar Type Drill Machine
  Specification   Model
  Drilling Capacity (in Mild Steel)   25 mm
  Pillar Diameter   90 mm
  Spindle nose to table distance   830 mm
  Spindle nose to base distance   1000 mm
  Distance from Spindle centre to Pillar face   225 mm
  Taper in Spindle   MT.3
  Number of Speed   8 Speed
  Range of Speed   96 x 3200 RPM
  Table Size   Round 336 mm
  Base Size (Machined Area)   325 x 290 mm
  Overall Base Size   550 x 375 mm
  Spindle Travel   175 mm
  Pillar Length   1425 mm
  Overall height with pulley Guard   1700 mm
  V. Belt Section   B. 47
  Weight (Approx)   200 Kgs
  Motor 1440 RPM 3 Phase 440 Volts   1 HP

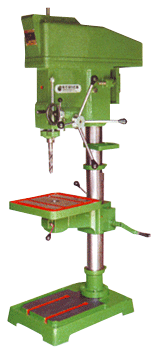

  32 mm Pillar Type Drill Machine
  Specification   Model
  Drilling Capacity (in Mild Steel)   32 mm
  Pillar Diameter   106 mm
  Spindle nose to table distance   625 mm
  Spindle nose to base distance   1000 mm
  Distance from Spindle centre to Pillar face   285 mm
  Taper in Spindle   MT.3
  Number of Speed   8 Speed
  Range of Speed   70 x 2000 RPM
  Table Size   415 x 415 mm
  Base Size (Machined Area)   400 x 350 mm
  Overall Base Size   650 x 440 mm
  Spindle Travel   225 mm
  Pillar Length   1425 mm
  Overall height with pulley Guard   1750 mm
  V. Belt Section   B. 58
  Weight (Approx)   300 Kgs
  Motor 1440 RPM 3 Phase 440 Volts   1.25 HP


  38 mm Pillar Type Drill Machine
  Specification   Model
  Drilling Capacity (in Steel) (in C.I.)   38 mm
  Pillar Diameter   121 mm
  Spindle nose to table distance   830 mm
  Spindle nose to base distance   1000 mm
  Distance from Spindle centre to Pillar face   320 mm
  Table Travel   450 mm
  Taper in Spindle   MT.4
  Number of Speed   8 Speed
  Range of Speed   70 to 2000 RPM
  Table Size   400 x 400 mm
  Base Size (Machined Area)   415 x 350 mm
  Overall Base Size   720 x 470 mm
  Spindle Travel   240 mm
  Column Length   1450 mm
  Overall height with pulley Guard   1750 mm
  V. Belt Section   B. 58"
  Weight (Approx)   325 Kgs
  Motor 1440 RPM 3 Phase 440 Volts   1.5 HP
